29 speaking stops programmable from a selection of
147 independently voiceable stops
that are Powered by DRAKE™ technology.
5 interactive stop lists™ - Programmable Channeling Memories - 3-D Chamber
Layout™
Solo Coupler, Sub & Super Couplers
8 audio outputs with 5 band digital EQ on each output pair
An elegant wooden console with deluxe bench including music storage compartment
Wooden pedal sharps highlight the AGO pedal board
Powerful DRAKE™ Technology (DSP-RISC ADVANCED
KEYBOARD ENGINE) with
Advanced Sampled Wave Processing®
29 Stops- 147 Independently Voiceable Stops available in total
Interactive Stop Lists™(5 - one original and 4 User Programmable)
Selectable On-Board Additional Sounds for each Division
Wooden Roll Top with Key-Lock
Deluxe Bench with Music Storage Shelf
Lighted Pedalboard
Wooden Pedal Sharps
Velocity Sensitive Tracker Touch Keyboards
12 General Pistons, 6 Divisional Pistons and 40 Memory Levels
Piston Sequencer, 500 positions
Pistons Coupled
Return to Handset Registration
Programmable Tutti (5 - one original and one for each Interactive Stop ListTM)
Memory Lock
Lighted Toe Stud Pistons
Tracker Touch Control
Manual Assignments
Metronome
Stop by Stop adjustable Windchest Layout
Note by Note, Stop by Stop Regulation
Note by Note Pitch adjustment for Celeste Stops
Adjustable Tremulants for Great & Swell
Song Sequencer
Disk Drive
Interactive Programmer™ (controls functions by wireless remote control)
Control Panel (controls most of the organ functions)
20 x 4 LCD display
Selectable Historic Temperaments
Programmable Temperaments with 4 memories
12 Step Transposer +/- 6 half steps
Automatic Pedal
Solo Coupler with selectable division, split and octave range
Super and Sub Couplers for Swell Manual
Pipe Stops ON/OFF
Digital Stops ON/OFF
Auto Pipe Tracking™

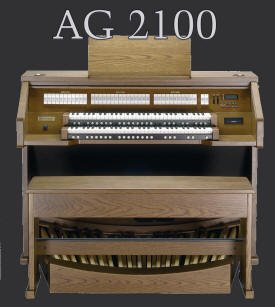

AG2100 FEATURE SET
AHLBORN-GALANTI ORGANS
The Electronic Organ for Pipe Organ People™
THE NEW BENCHMARK
Internal 3-Channel speaker and amplifi cation system 150w Bass, 2 x 70w mid-range
& treble
Independent 5 Band Equalizer for internal speaker system
8 Independent Output Channels (4 pairs)
User Programmable Digital AcousticsTM- Reverb/Effects with four memories
User Programmable Independent 5 band Equalizer on each output pair
3-D Chamber LayoutT™
Main OFF/Antiphonal ON
Stop by Stop Channelling (windchest confi guration and outputs internal and/or
external (1 - 4)
Interactive ChannellingT™ (5 - one original and one for each Interactive
ChannellingT™ Stop)
Swell Expression Shoe
Adjustable Swell Expression Range
Selectable Expression Mode (mechanical or 8 stage)
Programmable 20 step Crescendo (for each stop list)
Great and Pedal Volume Sliders
Stop by Stop Selectable Expression
Programmable Great and Pedal Enclosed
AUX IN 1 (with level control for use with microphones or other audio device)
AUX IN 2
Computer Serial Port
Headphone Jack
MIDI commands programmable on Pistons (General and Divisional)
Programmable MIDI channels, IN and OUT, for MIDI 1
(MIDI OUT controlled by “MIDI ON” stops)
Programmable MIDI channels, IN and OUT, for MIDI 2
Programmable PIPE MIDI Channels for use with POMI
MIDI 1 IN, OUT and Thru
MIDI 2 IN, OUT and Thru
MIDI IN fi lters for MIDI 1 and MIDI 2
MIDI OUT fi lters for MIDI 1 and MIDI 2
MIDI sustain on toe stud
Available in Dark or Light Oak Finish, with Lighted Rocker Tablets
Optional Wooden Keyboards Available
Ten Year Limited Warranty covers parts for ten (10) years as specifi ed
by the Ahlborn-Galanti Warranty Policy
ETL- Approved (meets UL-469 standards)
Complies with part 15 of the FCC rules
Dimensions: (w) 57.1in/145cm, (h) 45.3in/115cm, (d) 26.8in/68cm
Depth with Pedalboard - 41.7in/106cm Console Weight: 293lbs/133Kg
AG2100 STOP LIST
| Pedal Stops | Great Stops | Swell Stops | |||
| Alternate Ped. voices | Alternate Great voices | Alternate Swell voices | |||
| Principal 16 | Montre 16 | Gedackt 8 | |||
| Principal 16 | Quintatön 16 | Bourdon 8 | |||
| Violone 16 | Principal 8 | Flauto Cavo 8 | |||
| Sub Bass 16 | Principal 8 |
Rohrflöte 8 | |||
| Bourdon 16 | Prinzipal 8 | Viole de Gambe 8 | |||
| Octave 8 | Italian Principal 8 | Viola da Gamba 8 | |||
| Principal 8 | Montre 8 | Violin Diapason 8 | |||
| Violoncello 8 | Geigen Principal 8 | Dulciana 8 | |||
| Bass Flute 8 | Diapason 8 | Voix Céleste 8 | |||
| Bourdon 8 | Bourdon 8 | Viola Céleste 8 | |||
| Gambe 8 | Traverse Flute 8 |
Violin Céleste 8 | |||
| Choral Bass 4 | Gedackt 8 | Unda maris 8 | |||
| Super Octave 4 | Flauto Cavo 8 | Prestant 4 | |||
| Nachthorn 4 | Rohrflöte 8 | Octave 4 | |||
| Mixture IV | Octave 4 | Octave 4 | |||
| Mixture V | Prestant 4 |
Koppelflöte 4 | |||
| Posaune 16 | Octave 4 | Flûte Conique 4 | |||
| Basson 16 | Orchestral Flute 4 | Orchestral Flute 4 | |||
| Bombarde 16 | Flûte Conique 4 |
Nazard 2 2/3 | |||
| Fagotto 16 | Harmonic Flute 4 | Quint 2 2/3 | |||
| Trumpet 8 | Koppelflöte 4 | Sesquialtera II | |||
| Trompette 8 | Super Octave 2 | Octavin 2 | |||
| Additional Stop Pedal *** | Doublette 2 |
Doublette 2 | |||
| Great to Pedal | Piccolo 2 | Piccolo 2 | |||
| Swell to Pedal | Blockflöte 2 | Blockflöte 2 | |||
| Fourniture V | Plein Jeu IV | ||||
| *** Additional Stop Pedal |
Mixture IV |
Cymbale IV | |||
| Untersatz 32 | Mixture III | Cymbale V | |||
| Contrebasse 32 | Scharf III | Basson 16 | |||
| Contre Bombarde 32 | Trumpet 8 | Hautbois 16 | |||
| Schalmei 4 | Trompette 8 |
Bombarde 16 | |||
| Regal 4 | Tromba 8 | Trompette 8 | |||
| Timpani | Trompete 8 | Trumpet 8 |
|||
| Chimes | Additional Stop Great *** | Tromba 8 | |||
| Zimbelstern | Tremulant | Trompete 8 | |||
| Swell to Great | Additional Stop Swell *** | ||||
| Tremulant | |||||
| ***Additional Stop Great |
Swell to Swell 16 | ||||
| Diapason 8 | Swell to Swell 4 | ||||
| Montre 8 | Swell off Swell | ||||
| Gemshorn 8 | |||||
| Quint 2 2/3 | ***Additional Stop Swell |
||||
| Piccolo 2 | Bourdon Doux 16 |
||||
| Larigot 1 1/3 | Geigen Principal 8 | ||||
| Sesquialtera II | Principal 8 | ||||
| Cymbale IV | Diapason 8 | ||||
| Cornopean 16 |
Flûte Céleste II 8 | ||||
| Bombarde 16 | Tierce 1 3/5 |
||||
| Clarinet 8 | Larigot 1 1/3 | ||||
| French Horn 8 | Jeu de Clochette II | ||||
| Krummhorn 8 | Cymbale IV | ||||
| Cromorne 8 | Acuta III | ||||
| Festival Trumpet 8 | Cymbale III | ||||
| Tuba 8 | Hautbois 8 |
||||
| Piccolo Trumpet | French Horn 8 | ||||
| Clairon 4 | Clarinet 8 | ||||
| Schalmei 4 | Krummhorn 8 | ||||
| Chimes | Cromorne 8 | ||||
| Zimbelstern | Voix Humaine 8 | ||||
| Harpsichord | Festival Trumpet 8 | ||||
| Harp/Celesta | Tuba 8 | ||||
| Piano | Piccolo Trumpet |
||||
| Gospel Organ (jazz) |
Clairon 4 | ||||
| Rhodes Piano | Schalmei 4 | ||||
| Brass Choir | Chimes | ||||
| Orchestral Strings | Zimbelstern | ||||
| Orchestral Strings | Harpsichord | ||||
| Harp/Celesta |
|||||
| Piano | |||||
| Gospel Organ (jazz) | |||||
| Rhodes Piano | |||||
| Brass Choir | |||||
| Orchestral Strings |
Additional Stop Tab Controls
Interactive Channeling™ 2-5
Interactive Stop List™ 2-5
Couplers
Great to Pedal
Swell to Pedal
Swell to Great
Swell to Swell 16
Swell to Swell 4
Swell off Swell
Additional Controls
Main Off
Antiphonal On
MIDI on Great
MIDI on Swell
MIDI on Pedal
MIDI Sustain
Automatic Pedal
Solo Coupler
Pistons Coupled
Pipe Ranks On/Off
Digital Ranks On/Off
Tutti
Crescendo
Transposer
12 General Pistons
6 Divisional Pistons
40 Memory Levels
